OptiX RTN 320F Dual-Channel Radio Transmission System for Optimal Network Performance

Name: OptiX RTN 320F DualChannel Radio Transmission System for Optimal Network Performance
Brand: Other
Price: 1 USD

China OptiX RTN 320F Dual-Channel Radio Transmission System for Optimal Network Performance wholesale

Model Number : RTN 320F

Type : Other

Place of Origin : Guangdong, China

Brand Name : Other

Use : Sea surface, land, hills and forests, islands

Warranty Time : 1 year

Network : Wireless Lan, TCP, Ip, wifi, IP microwave

Product name : IP microwave

Frequency band : 6 ~ 42 GHz

Channel spacing : 3.5/ 7/14/28/40/56/112 MHz

Radio-frequency direction : 12

TDM crossover capacity : 32*32 VC-4

Power supply : -38.4 V~-57.6 V

Network layer : Suitable for: access layer and aggregation layer

Channel bandwidth : Determine based on ODU bandwidth

Usage : Wireless long-distance transmission

Feature : High efficiency/High performance

MOQ : 2 sets

Price : $1,466.67/sets 2-19 sets

Contact Now

PRODUCT DESCRIPTION

OptiX RTN 320F Dual-Channel Radio Transmission System for Optimal Network Performance

Long Range Microwave Transmission Equipment Assembly IDU RTN 320F

The OptiX RTN 320F (RTN 320F for short) is a next-generation, full-outdoor, and dual-channel product in the OptiX RTN radio transmission system series.
There are two types of the OAU 2F: OAU 2F (DC option) and OAU 2F (P&E option). Unless otherwise specified, the OAU 2F represents these two types.

On mobile communication networks, the RTN 320F can:
* Independently form chain or ring backhaul networks to provide links with high capacity, bandwidth, and reliability for 3G/LTE base stations.

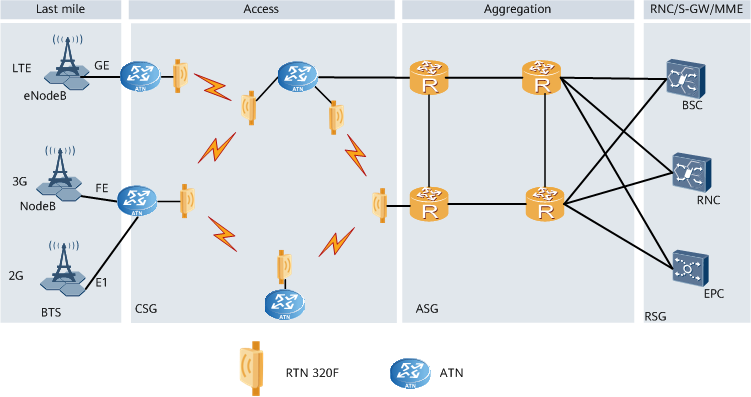

* Work with the ATN to provide a microwave channel solution for transparent transmission on the IP RAN.
* Replace an existing OptiX RTN 900 IDU which needs to be moved outdoors.
* Work with the RTN 380A/RTN 380AX to implement full-outdoor Super Dual Band. This solution achieves zero footprint and provideshigh-bandwidth and long-distance mobile backhaul links. This solution applies to tail sites without outdoor cabinets or equipment rooms. Figure 1-8 show a full-outdoor Super Dual Band solution where the RTN 320F serves as the slave device and works with the RTN 380A.

TECHNICAL SPECIFICATION

item	Specifications
Model Number	OAU 2F (DC option)	OAU 2F (P&E option)
Microwave type	IP microwave over Native Ethernet and over PWE3 Ethernet
Number of microwave directions	2
Frequency band	6/7/8/10/10.5/11/13/15/18/23/26/28/32/38/42 GHz (RTN XMC ODU)
Running mode	lS3 IS6 IS8
Channel spacing	ETSI: 7/14/28/40/56/112 MHza, b FCC: 30/40/50 MHzc
Modulation scheme	IS3 mode: QPSK Strong to 2048QAMdIS6 mode: QPSK Strong to 4096QAMf IS8 mode: QPSK Strong to 8192QAMg
Maximum air interface bandwidth	2.24 Gbit/s (total capacity of two channels)
Maximum air interface throughput	5 Gbit/s (total capacity of two channels)
Switching capacity	60 Gbit/s
RF configuration mode	N+0 (N ≤ 4) (When N is greater than 2, NEs must be cascaded.) 1+1 HSB/FD/SD protection configuration XPIC configurationMulti-direction site configuration
Channel configuration mode	ACAP ACCP CCDP
AM	Supported
ATPC	Supported
Ethernet frame header compression	Supported
Super Dual Band	Supports working with the RTN 380A/RTN 380AX to implement full-outdoor Super Dual Band.
PLA/EPLA	Supports: Intra-equipment PLA/EPLA Inter-equipment EPLA
LLDP	Supported
QoS/HQoS	Supported
CA	Supported
Service port	Two 10GE/GE/FE SFP portsh, i Two unpluggable FE/GE electrical ports	Two 10GE/GE/FE SFP portsj, k One unpluggable FE/GE electrical port One P&E port
Service type	Native Ethernet: E-Line, E-LAN PW-carried Ethernet: E-Line, E-LAN (VPLS)
Clock feature	Supported clock sources: microwave link clock and synchronous Ethernet clockl
Power supply mode	DC power supply	P&E power supply
Chassis dimensions of the OAU 2F (H x W x D)	300 mm x 220 mm x 60 mm
ODU	RTN XMC-2/2E/2H/3/3H/3E/5D ODU (covering all frequency bands from 6 GHz to 42 GHz)
Antenna	Full-band antenna solution where single-polarized antennas and dual-polarized antennas with a diameter of 0.2 m to 3.7 m as well as the applicable antenna accessories are available
a: 112 MHz is supported only in IS6 and IS8 modes. b: In this version, only RTN XMC-3 ODUs operating in the 32 GHz frequency band and RTN XMC-3 ODUs (112 MHz) operating in the 18/23 GHz frequency band support the 112 MHz channel spacing. c: In this version, only RTN XMC-2/XMC-2H/XMC-2E ODUs operating in certain frequency bands support FCC channel spacings. d: The difference between Strong/Light modulation schemes and normal modulation schemes lies in FEC encoding parameter settings.Strong modulation schemes provide stronger FEC capabilities, which means higher receiver sensitivity but lower air interface bandwidth. Light modulation schemes provide otherwise. e: In IS3 mode, 2048QAM is supported only when XPIC is disabled and AM is enabled. f: In IS6 mode, 4096QAM is supported only when XPIC is disabled and AM is enabled. g: In IS8 mode, 8192QAM is supported only when the 28/40/56 MHz bandwidth is used, XPIC is disabled, and AM is enabled. h: To cascade NEs to form an EPLA protection group, you can install a 1.25/4.25/10 Gbit/s optical module on any optical port and use the port as a cascade port. i: To cascade NEs to form a 1+1 protection group, you can use any GE/10GE port as a cascade port. j: To cascade NEs to form an EPLA protection group, you can install a 1.25/4.25/10 Gbit/s optical module on any optical port and use the port as a cascade port. k: To cascade NEs to form a 1+1 protection group, you can use any GE/10GE port as a cascade port. l: If the two 10GE optical ports are configured as FE optical ports, they cannot both be included in the list for clock source selection.
